POS Hardware setup guide

This article provides step-by-step instructions for setting up your POS hardware. Each section outlines the installation process clearly to ensure setup and configuration are simple and easy to follow.

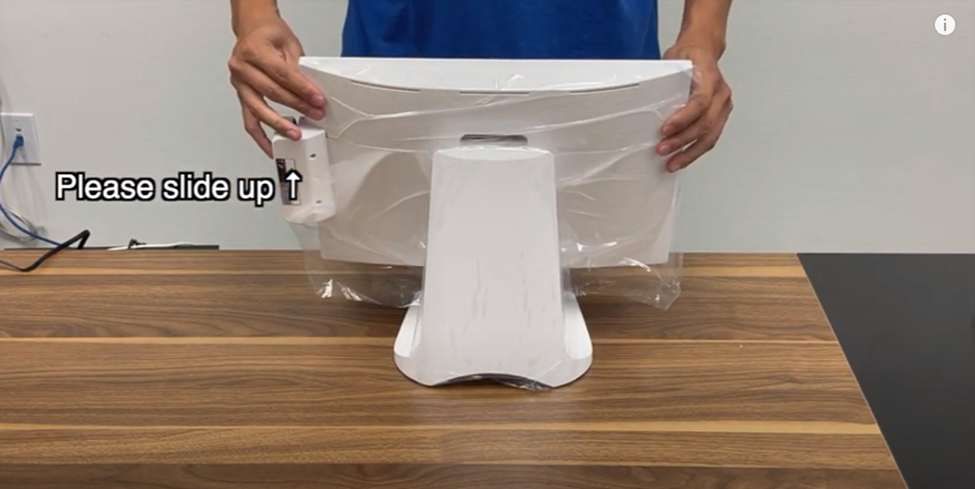

Unbox the POS device and place it securely on a flat surface. Rotate the unit to access the back of the device, then slide the top cover upward to open it.

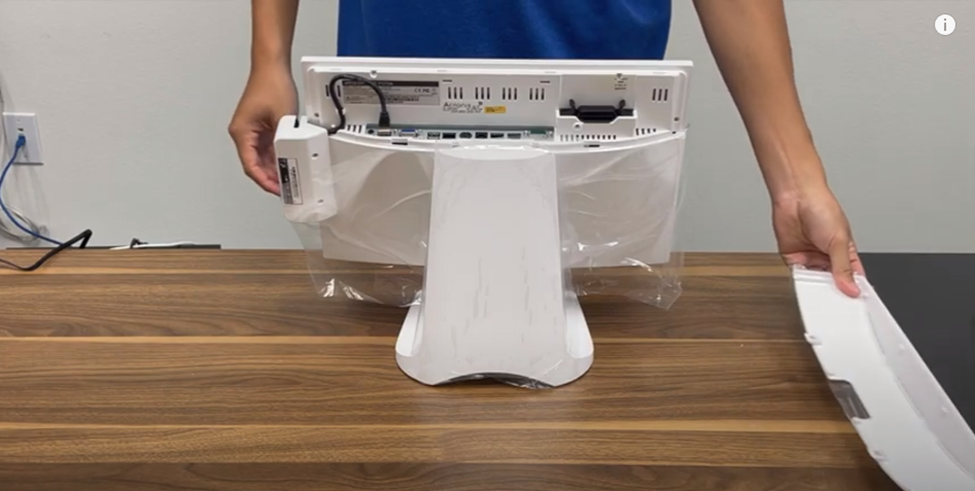

Locate the two notches at the bottom of the POS stand and gently push them outward to release the back cover clips. Once unclipped, slide the back cover upward and then downward to remove it completely.

Connect the power adapter to the designated power socket. Ensure the flat side of the adapter is facing outward for proper alignment.

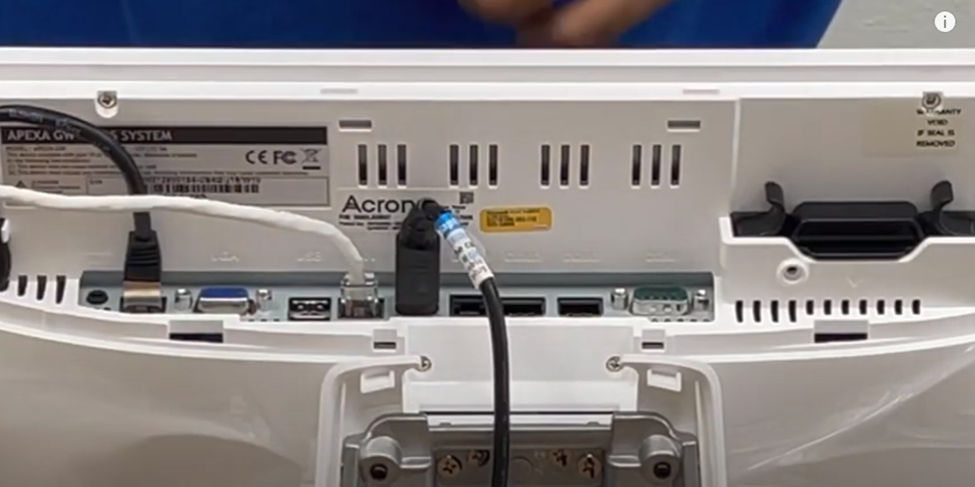

Connect the LAN cable to the LAN port located next to the power adapter socket.

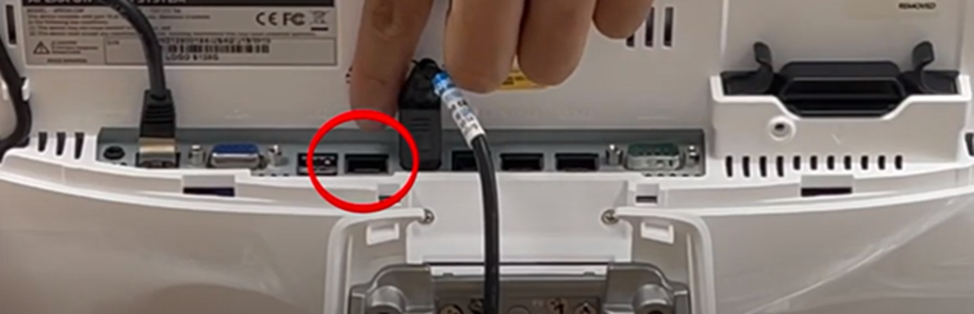

If you are installing a receipt printer, locate an available USB port and securely connect the printer's USB cable.

Note: For instructions on configuring the printer after connecting it, refer to the Receipt Printer Setup Guide.

Reattach the back cover and top cover to complete the hardware setup process.
