[PinPad] How to setup A80 IP Address

This is how to setup the A80 pinpad IP address in the POS, after performing a Power Reset. Since the pinpad may receive a new IP address after the reset, updating it on the POS ensures proper communication between the system and the A80 device.

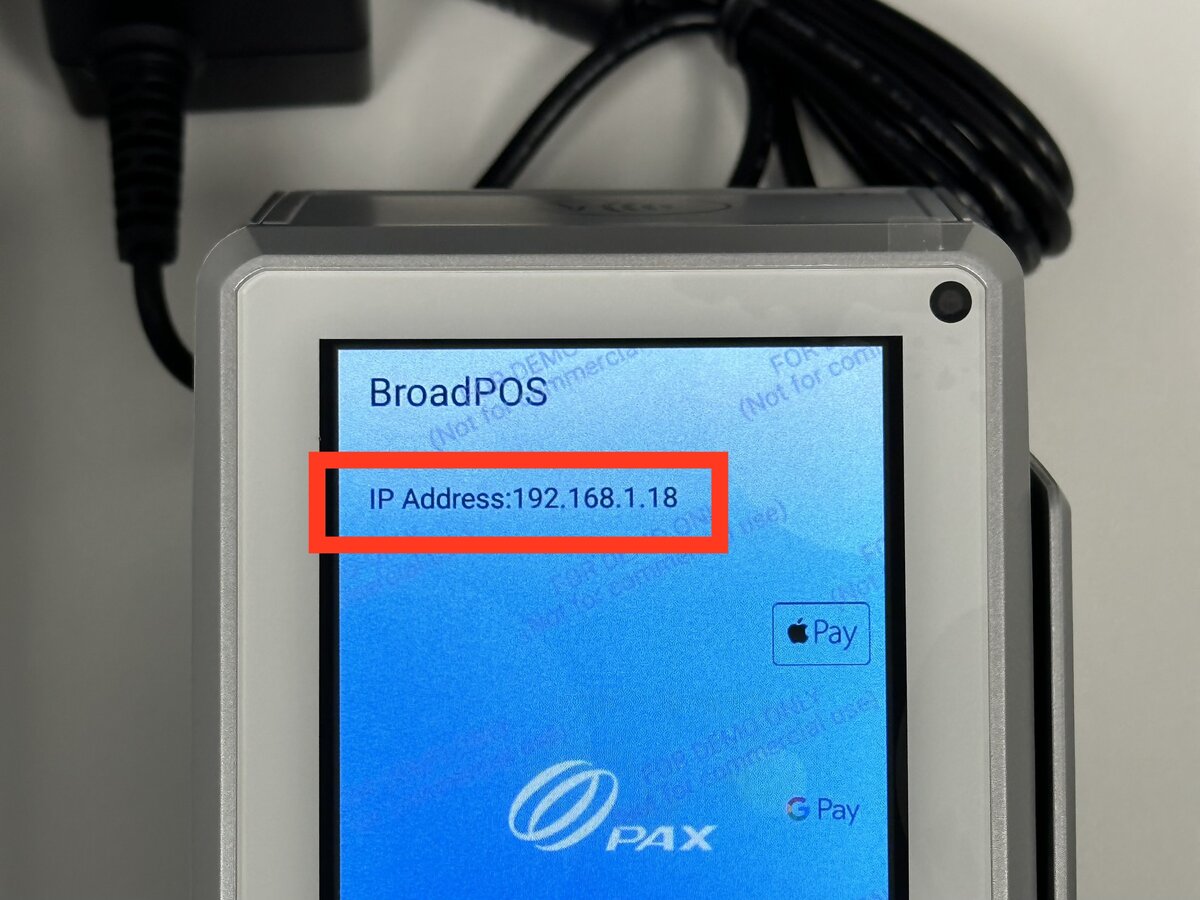

Run the Power Reset and note the IP address of A80 at the top.

On the VeronaPOS

Main Screen > MENU > SETTINGS> HARDWARE> PINPAD> SHARED #

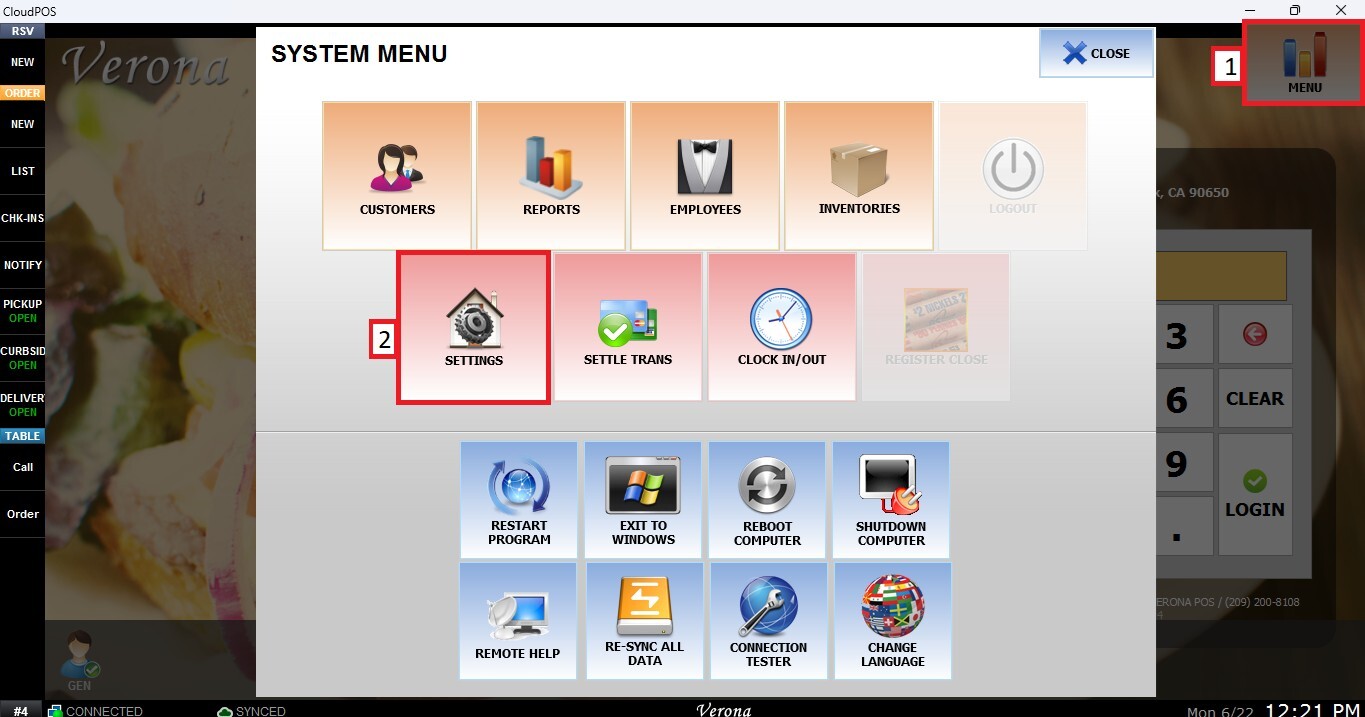

Go to MENU, then SETTINGS.

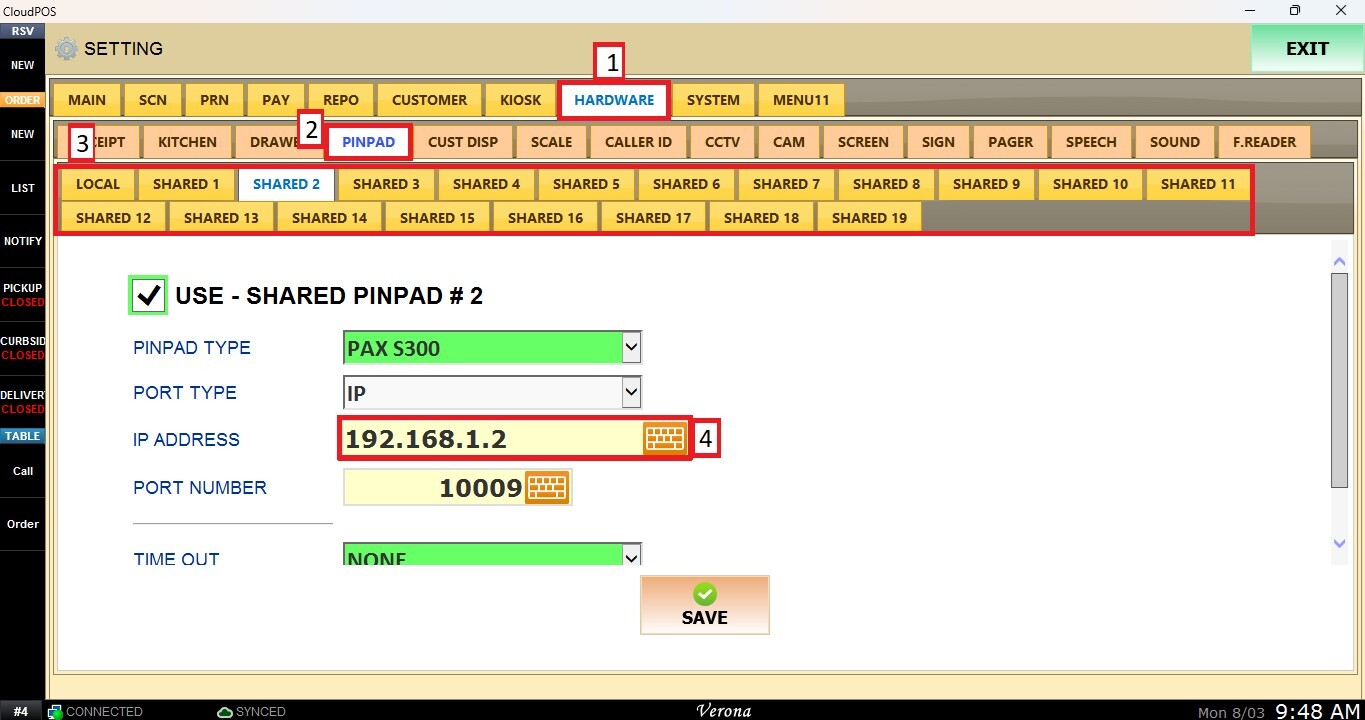

Navigate to HARDWARE, click on PINPAD and on the SHARED # tabs

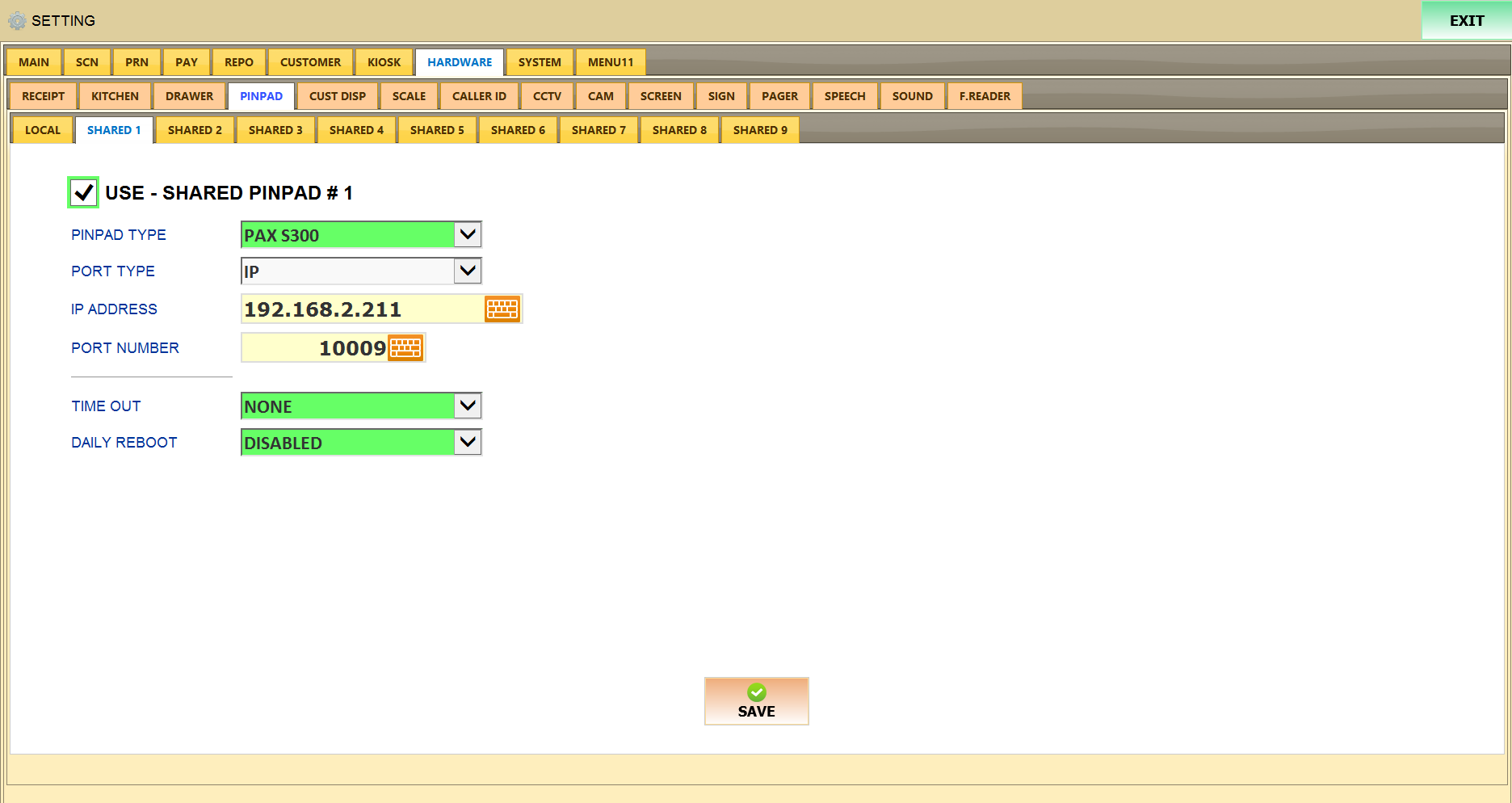

Update the IP Address field with the IP address currently assigned to the pinpad.

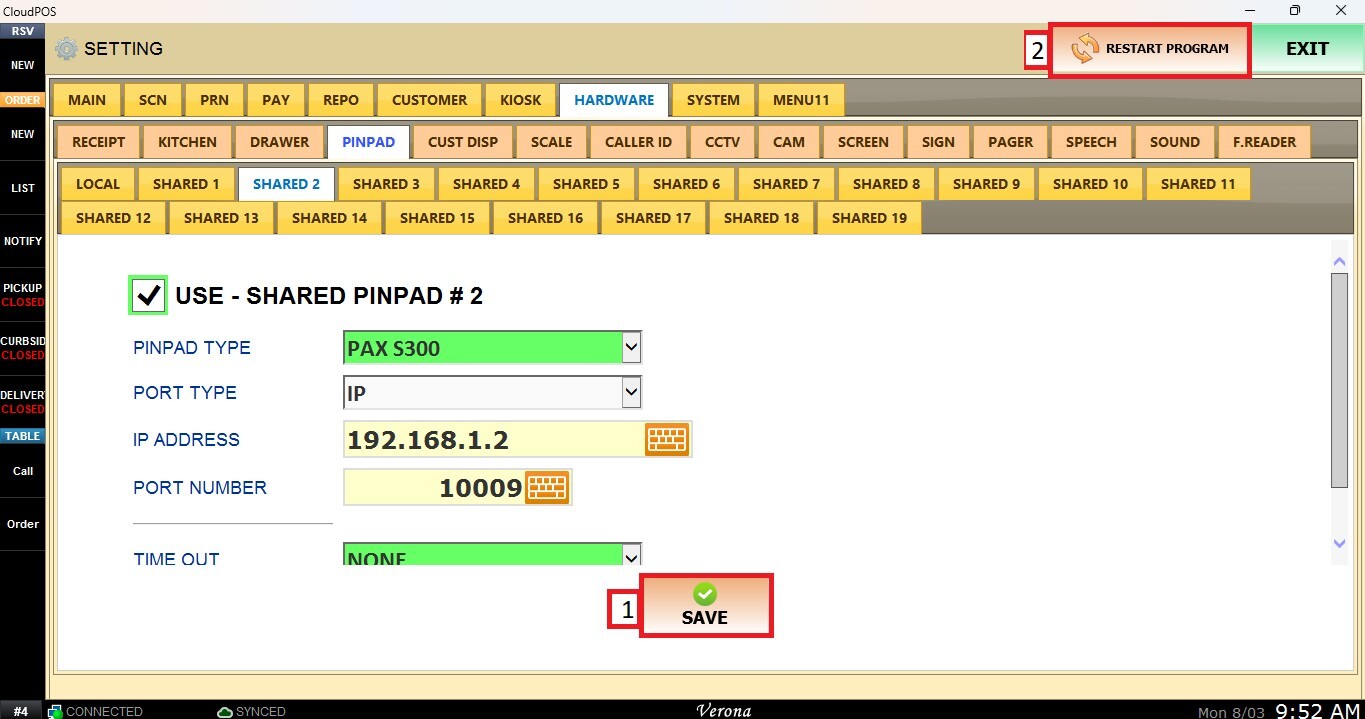

Click on SAVE and RESTART PROGRAM on top right corner after you made change.
