Kiosk Setup Guide

This article provides step-by-step instructions for assembling the VeronaPOS Kiosk and its floor stand. Proper assembly ensures the kiosk is structurally sound and that all cables for the power supply, network, and card terminal are securely connected for optimal performance.

For video instructions, click here: Kiosk Assembly Instruction Video

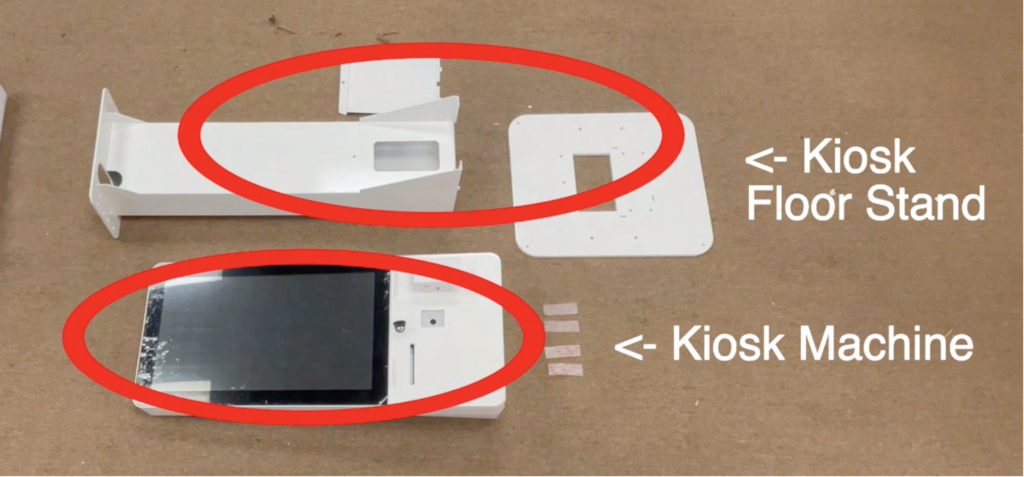

Begin with the Kiosk and Stand parts.

Kiosk and Stand parts

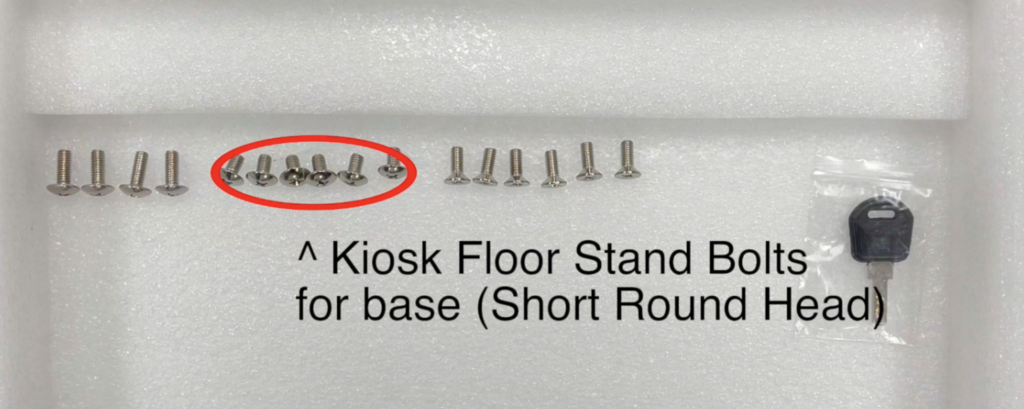

Bolts required for assembly.

Bolts 1

Bolts 2

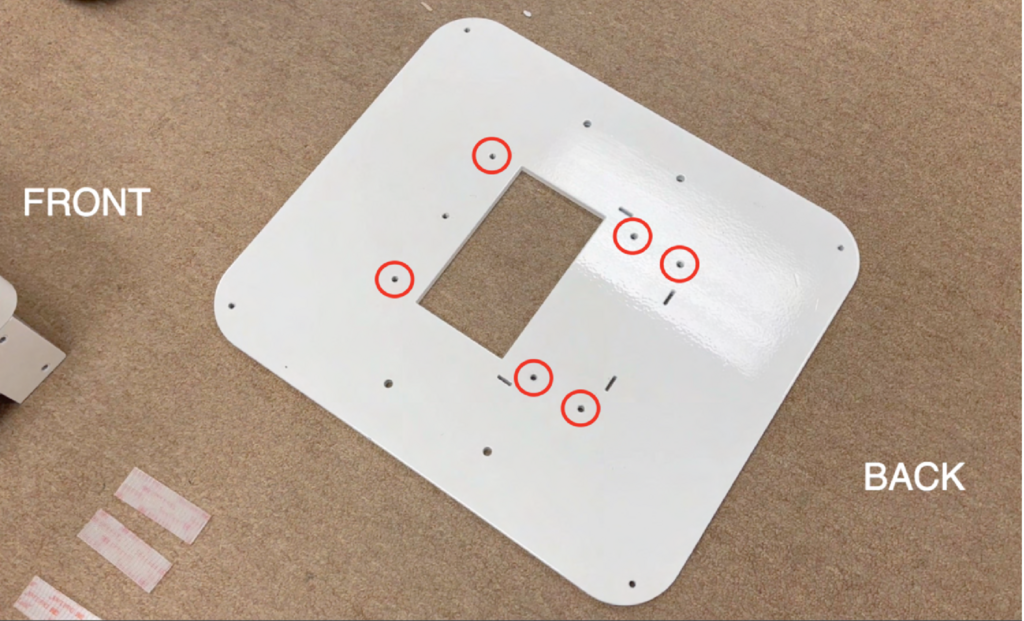

Kiosk Floor Stand Base. This is a very heavy panel. Bolts will be screwed into the 6 circled holes shown below.

Stand Base

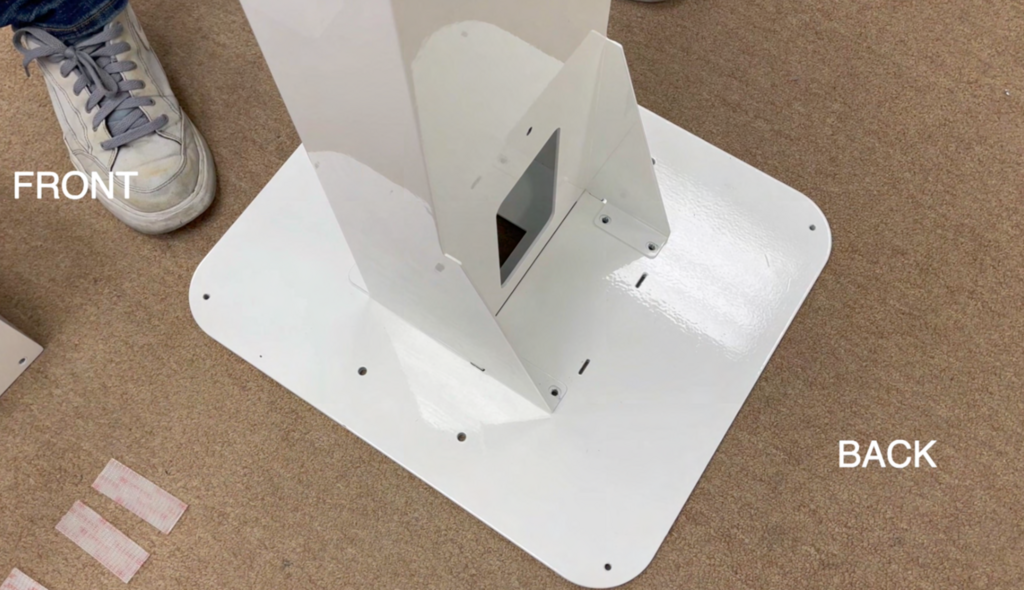

Place the stem on top of the base. Ensure the holes on the stem align with the holes on the base panel.

Stem placement

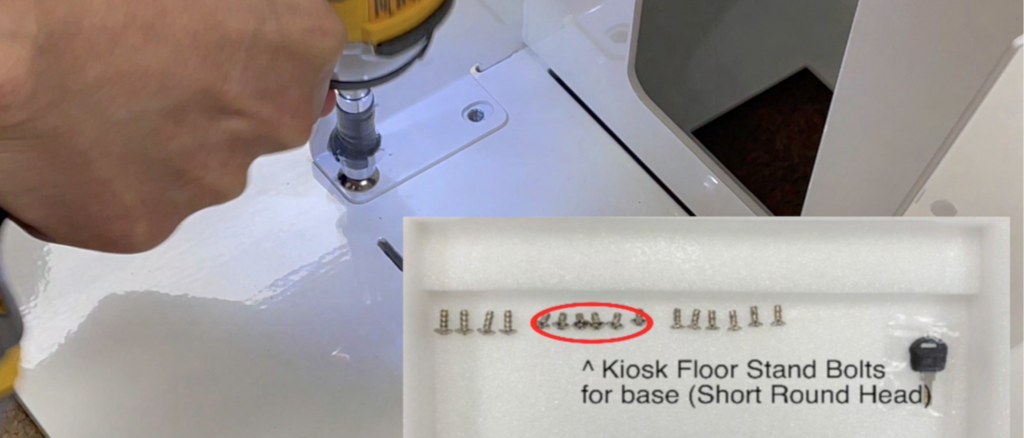

Use the short, round-head bolts to fasten the components. Only 6 are provided, so ensure you screw them into the circled spots mentioned previously.

Fastening bolts

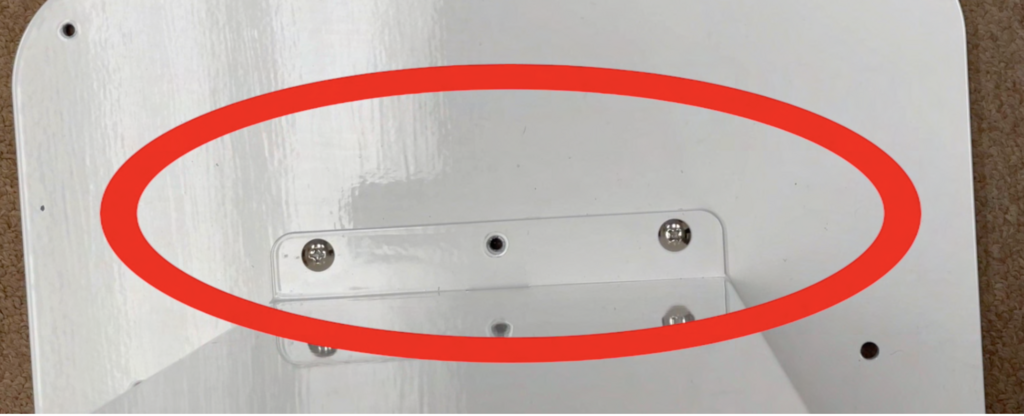

Bolt placement for the front and back of the base.

Bolt placement front

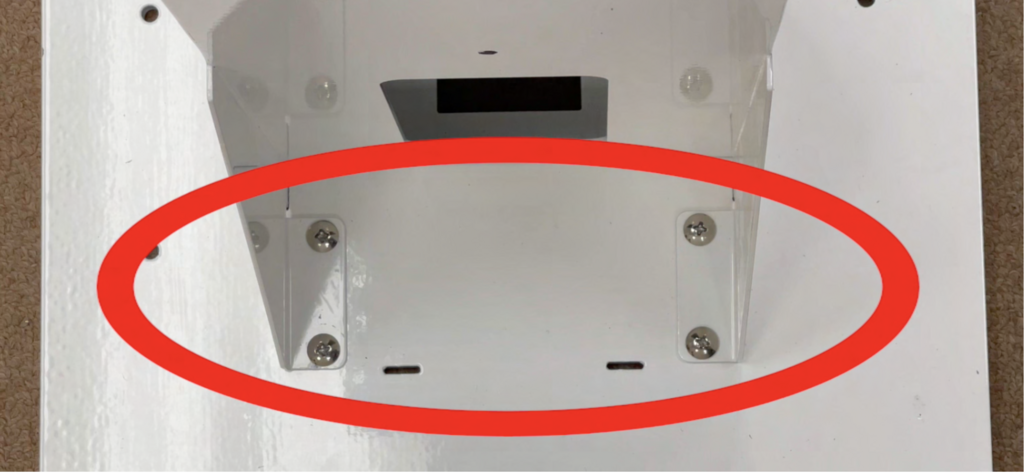

Bolt placement back

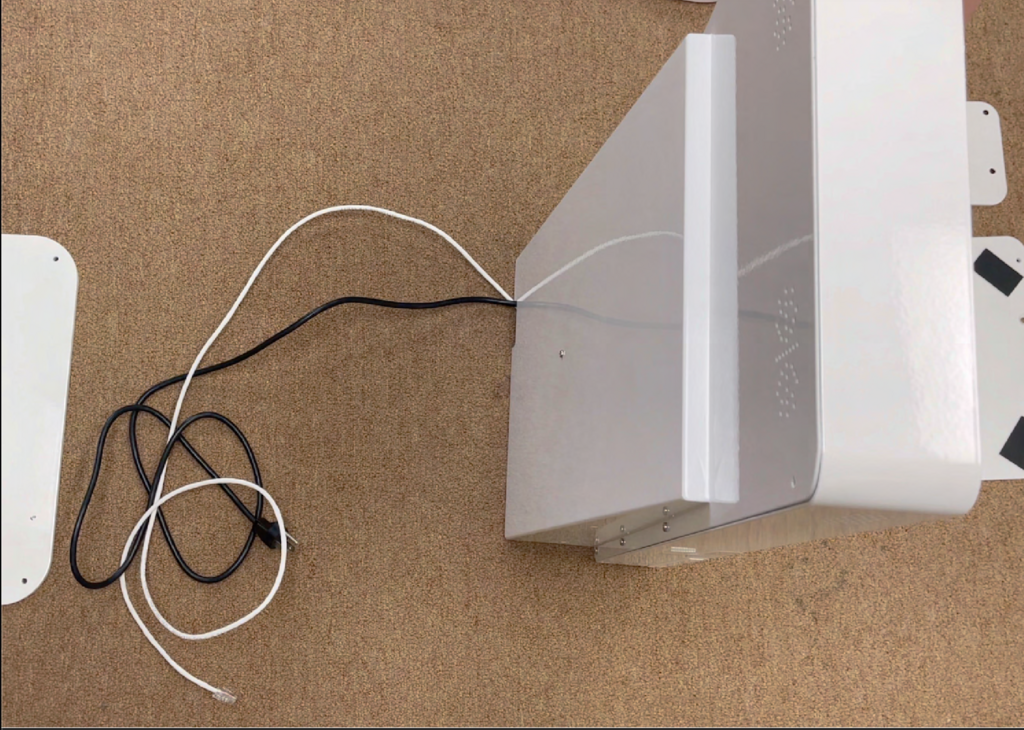

The Kiosk machine is shipped with the LAN and power cables already attached.

Pre-attached cables

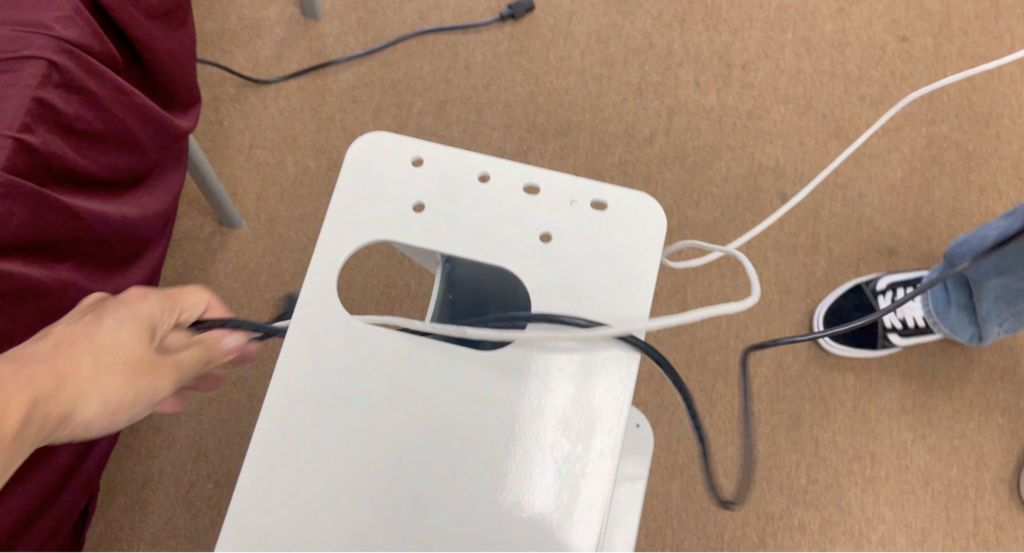

You can use the access hole to hide the LAN and power cables if needed. They can also be routed through the hole at the bottom of the stand stem.

Cable routing

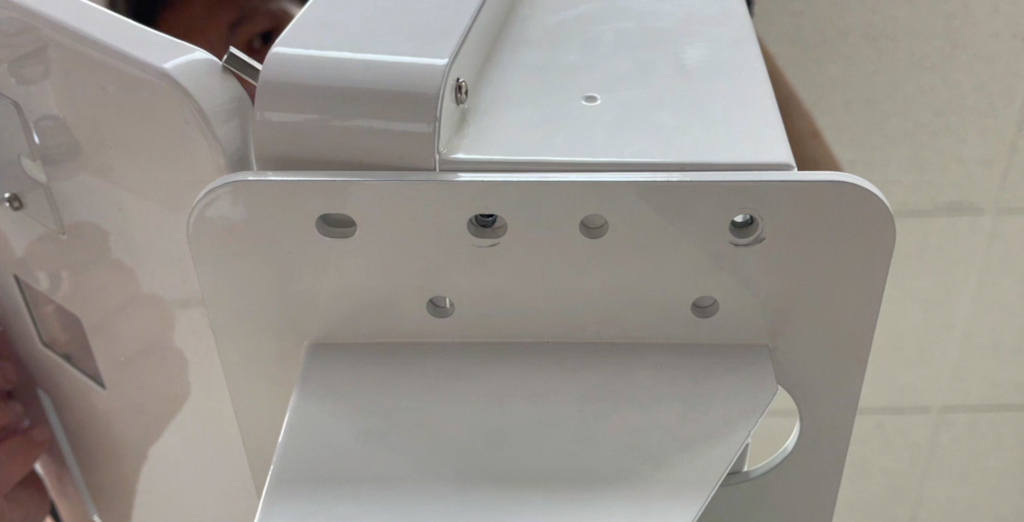

Align the hole on the Kiosk with the hole on the top base of the stem.

Alignment

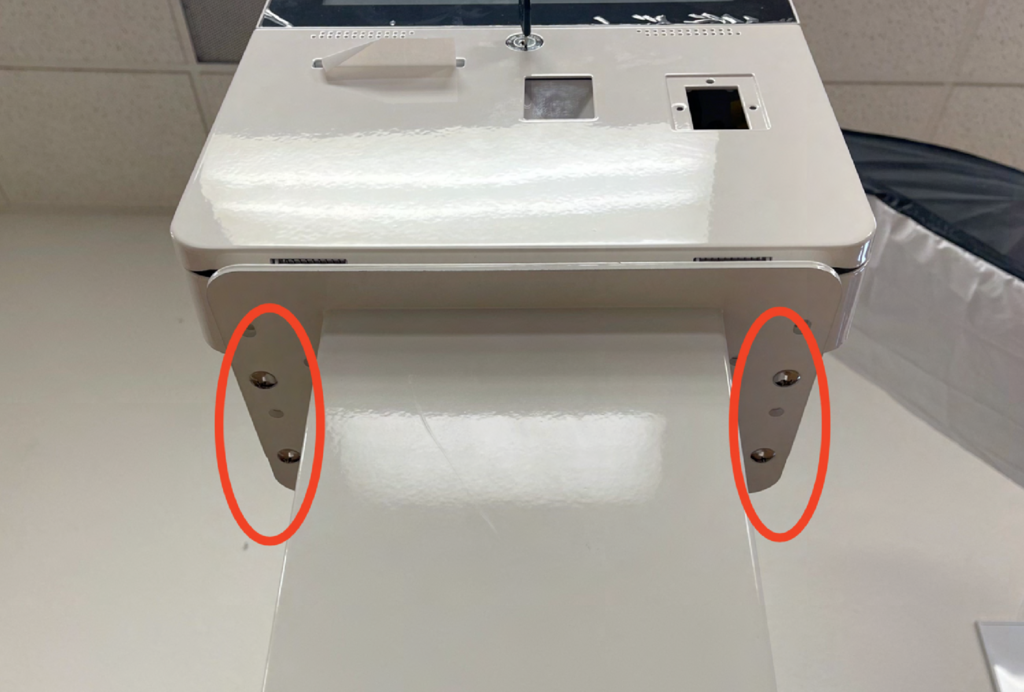

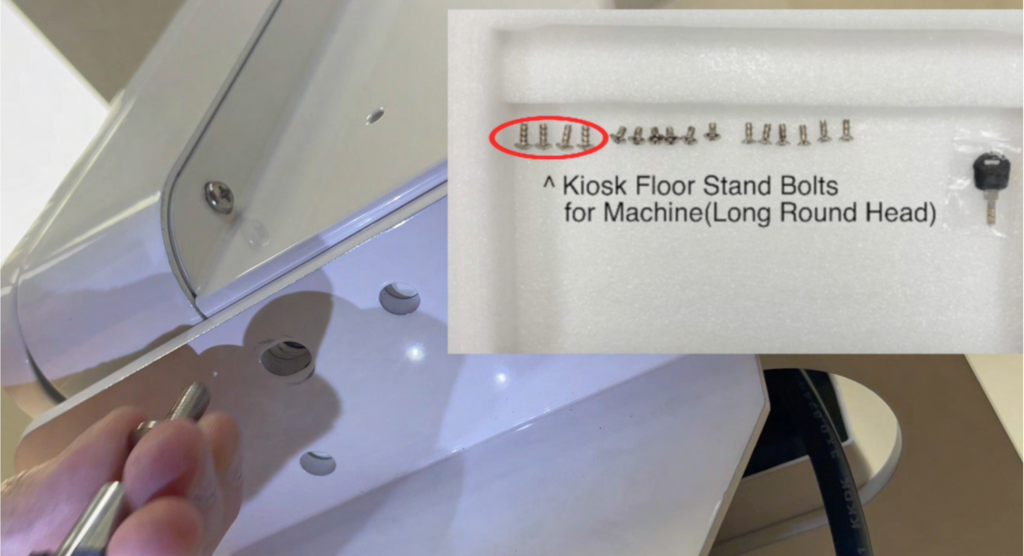

Screw in the 4 long, round-head bolts (2 on each side).

Securing Kiosk 1

Securing Kiosk 2

This completes the structural assembly of the stand.

Card Terminal Assembly

The card terminal assembly is the next step.

Terminal assembly

The LAN cable must be connected to the terminal and then to your router.

Note: Two separate LAN cables should be connected individually, one to the Kiosk and one to the Terminal.

LAN connections

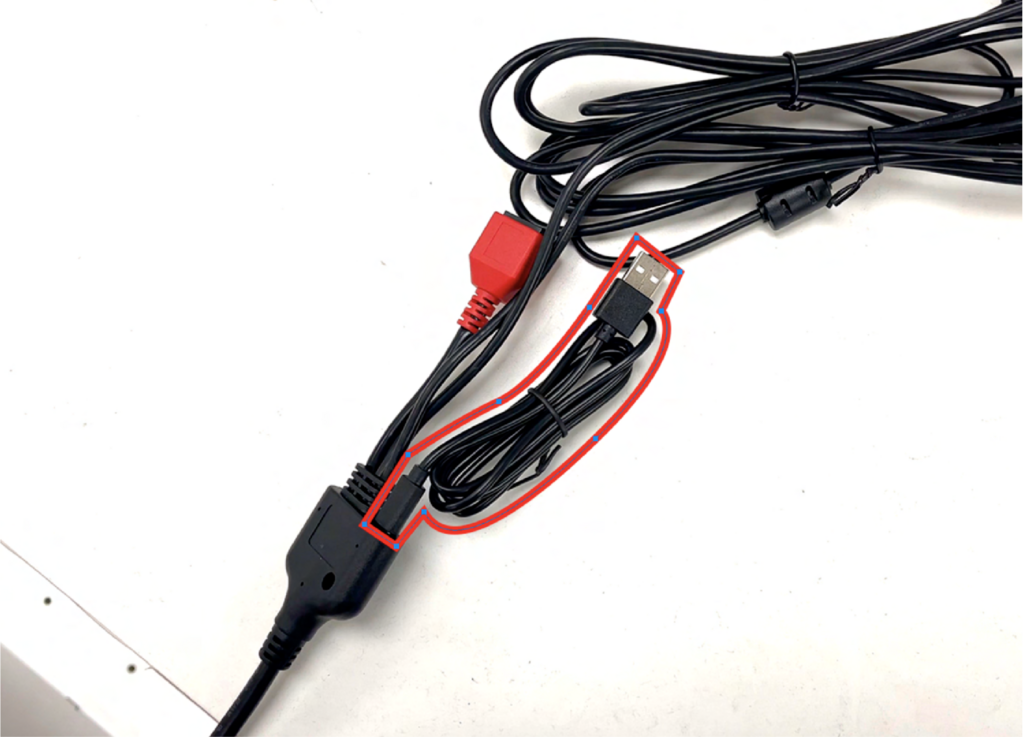

Power for the card terminal is connected via a USB to USB-C cable. Please connect it to a USB power supply.

Terminal power

 To connect the card terminal cable, first open the Kiosk case.

Open case

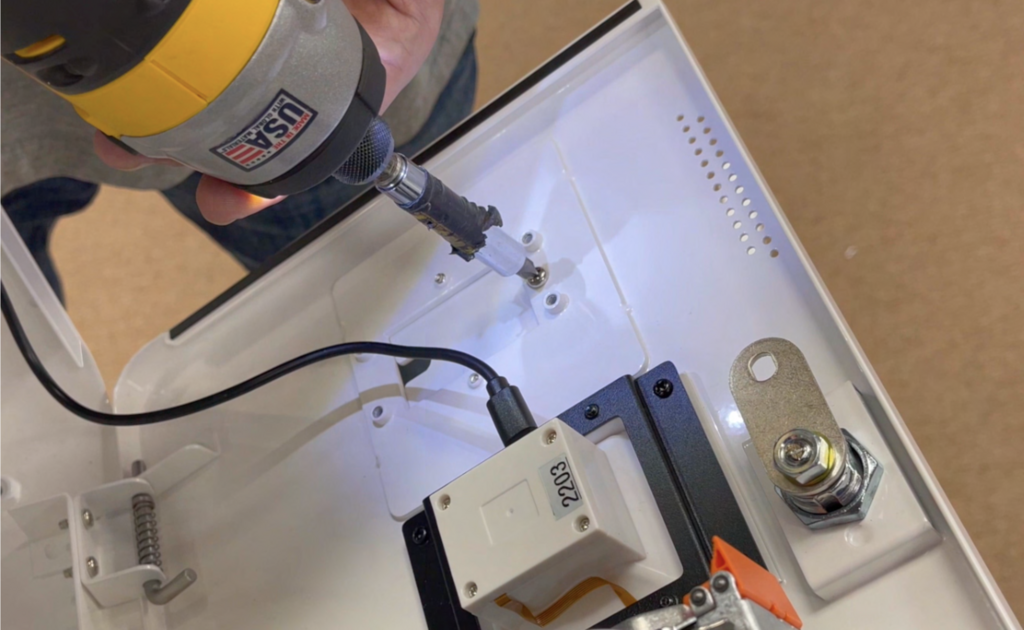

Unscrew the card terminal pinpad mount. There is one bolt inside the case and two bolts on the outside.

Unscrew mount

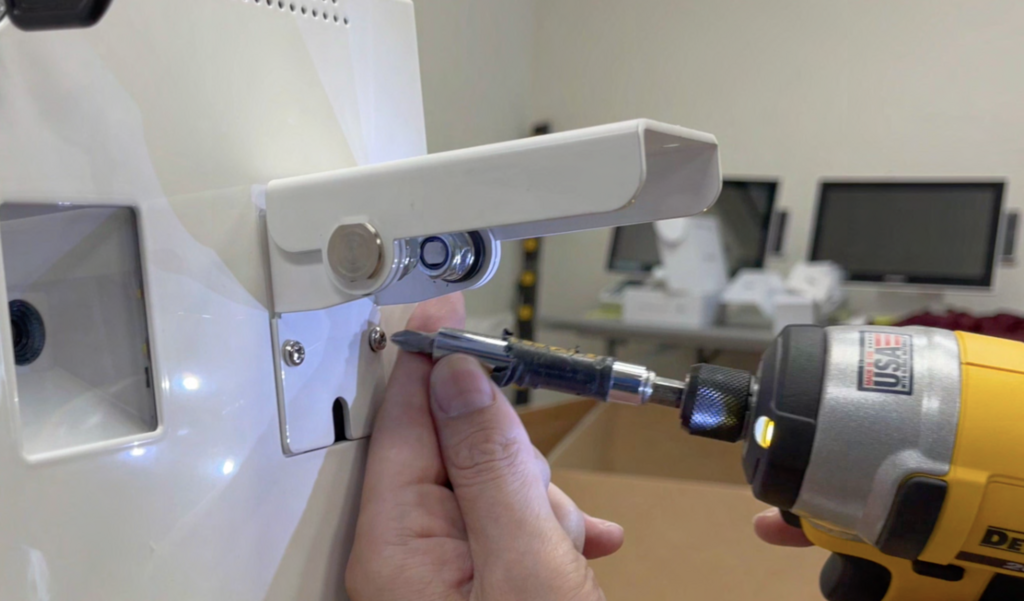

Here are the two bolts located on the outside.

External bolts

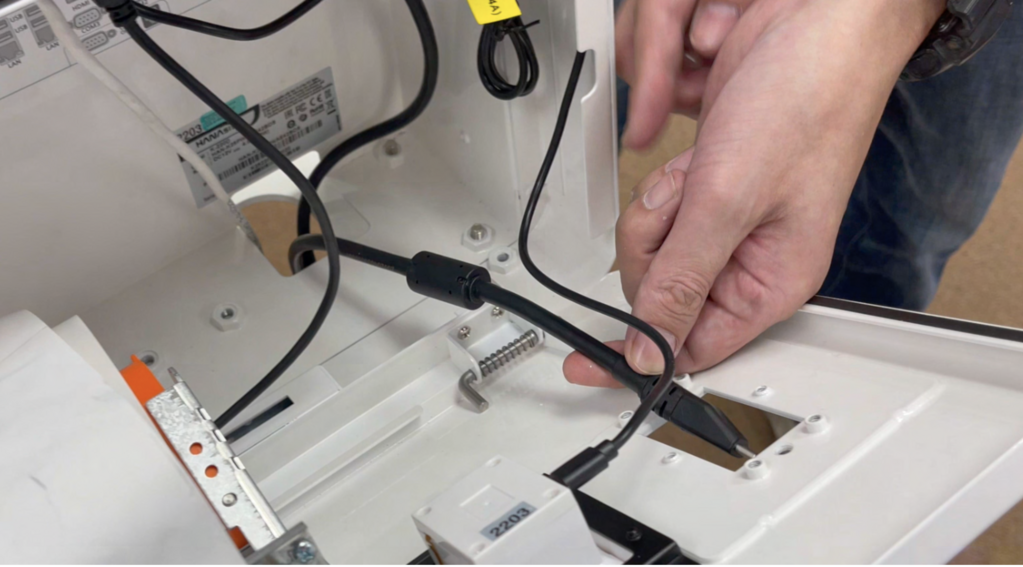

Route the USB-C cable toward the front of the kiosk through the hole in the back.

Route cable

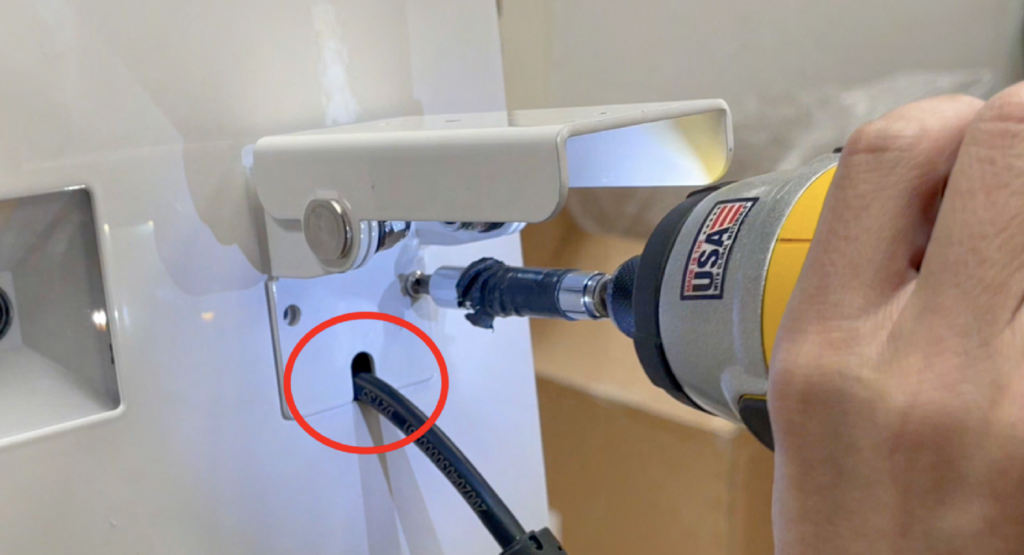

Reattach the mount, allowing the cable to run through the small gap in the mounting bracket.

Reattach mount

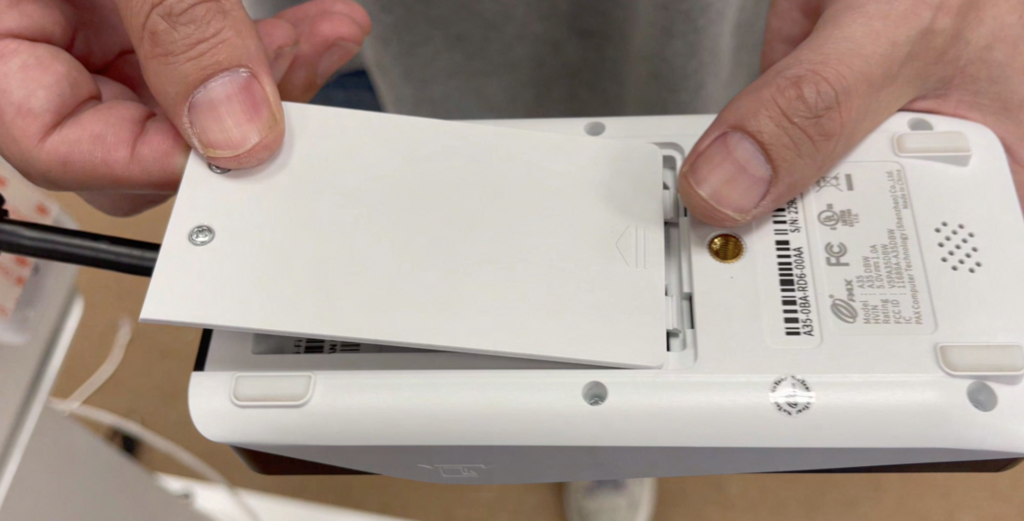

Unscrew the back of the card terminal and remove the back panel.

Open terminal

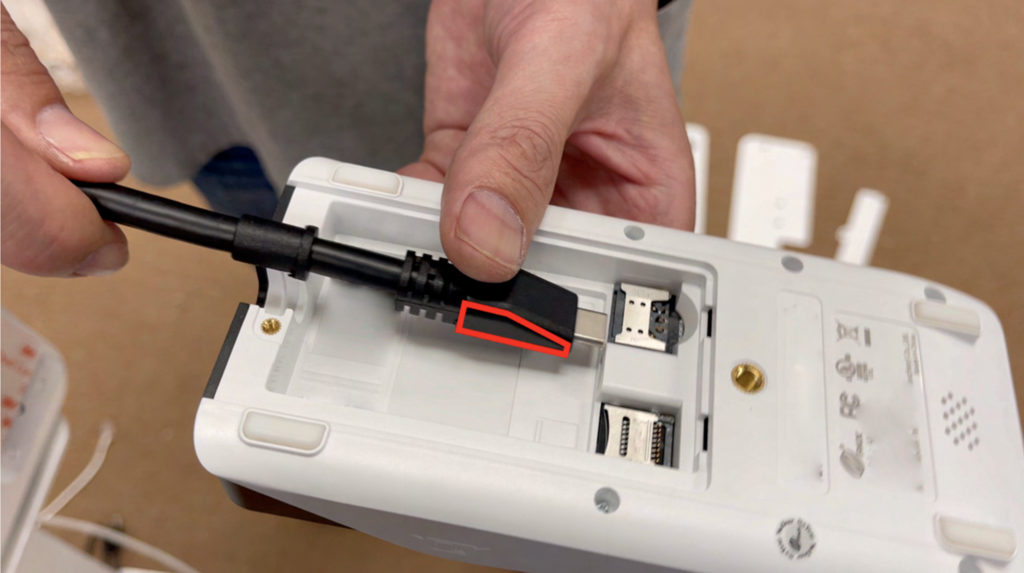

Connect the USB-C cable to the card terminal. Ensure the wedged part of the connector is facing up.

Connect USB-C

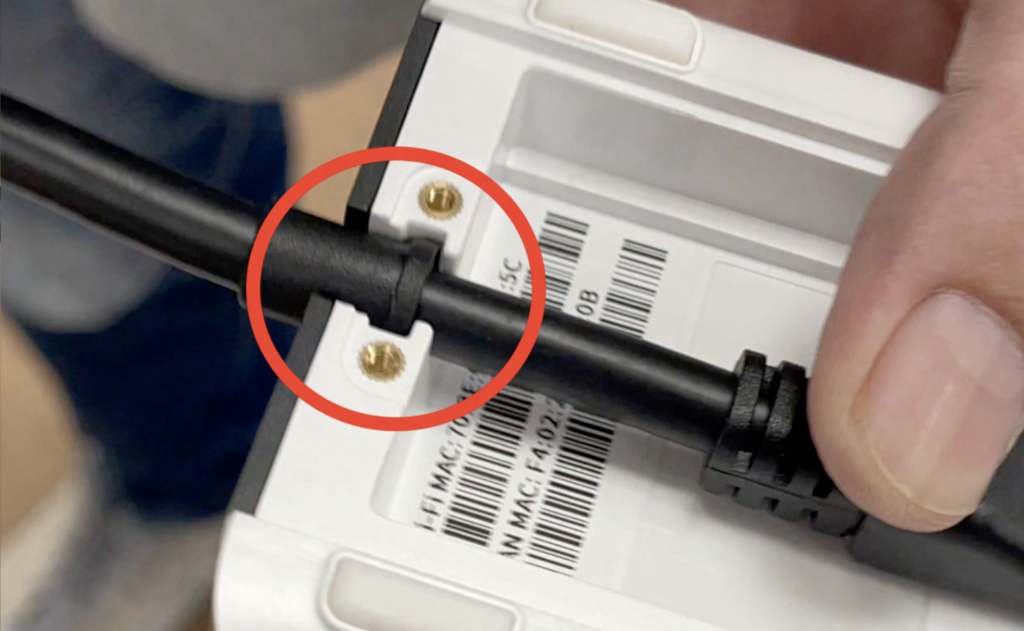

Ensure the back cover is placed correctly.

Replace cover

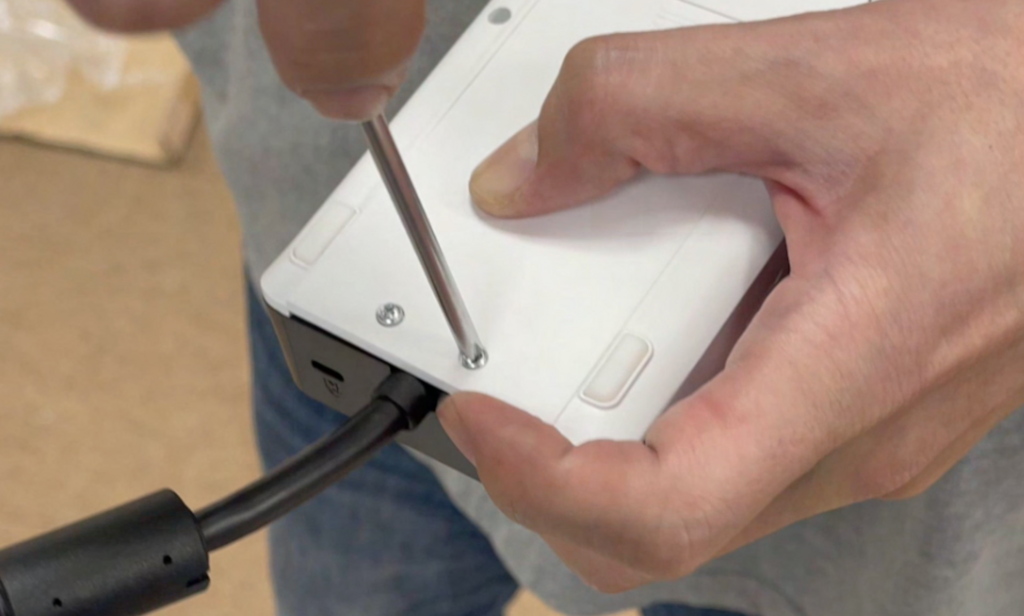

Screw the cover back into place.

Secure cover

Peel the film from the fastener strip and attach the card terminal to the top of the mount.

Fastener strip

Secure the terminal in your preferred orientation.

Finish terminal

To power on the kiosk, press the power button located inside the case in the front-left corner.
